Deskely ExtractAI

Turns P&IDs and isometrics into a checked tag register.

Book a demo
Commissioning & InspectionSearch...EnglishRS
Drawing Parser✦ AI

Read-only. This tab shows exactly what each drawing produced. Editing, accepting and committing happen on the Reconciliation tab.

Upload & Queue 7Extraction Results 327Review Disciplines 0Review Systems 2Review Tags 148
All TypesP&IDSLDBoundary
Scanned Documents (7)
582-82-PR-PID-00001.pdf48 tags · 5 pagesP&ID
582-82-PR-PID-00002.pdf61 tags · 2 pagesP&ID
582-82-EL-SLD-00001.pdf59 tags · 1 pageSLD
582-82-IN-BLK-00001.pdf19 tags · 1 pageBoundary
582-82-TC-BLK-00001.pdf31 tags · 1 pageBoundary
582-82-PR-PID-00001_Rev_C.pdf49 tags · 5 pagesP&ID
582-82-EL-SLD-00001_Rev_C.pdf60 tags · 1 pageSLD

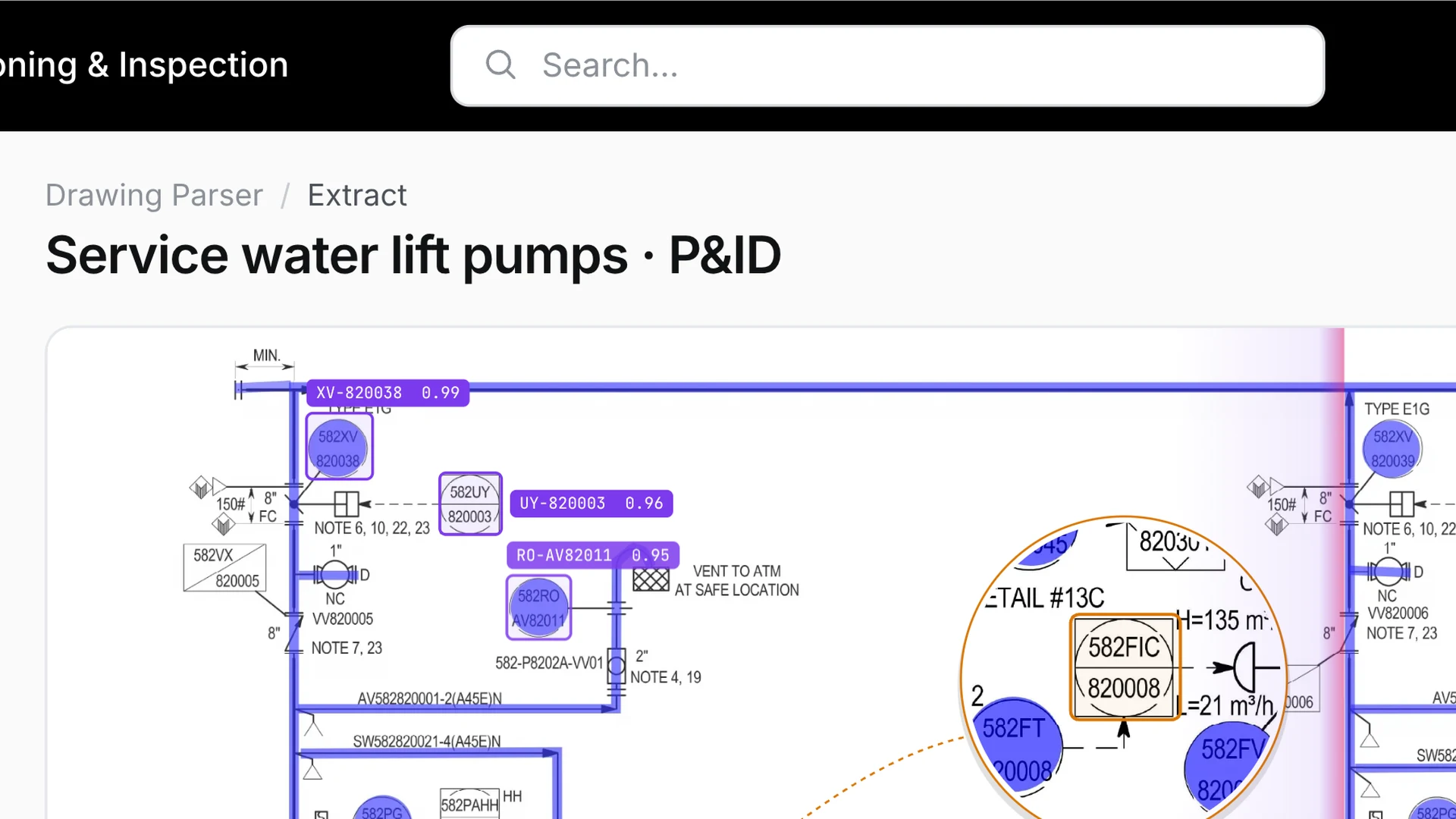

Extracted from 582-82-PR-PID-00001.pdfP&ID
Search tags...48 tags
Tag NoTypeDisciplineSystem / SubBndConf

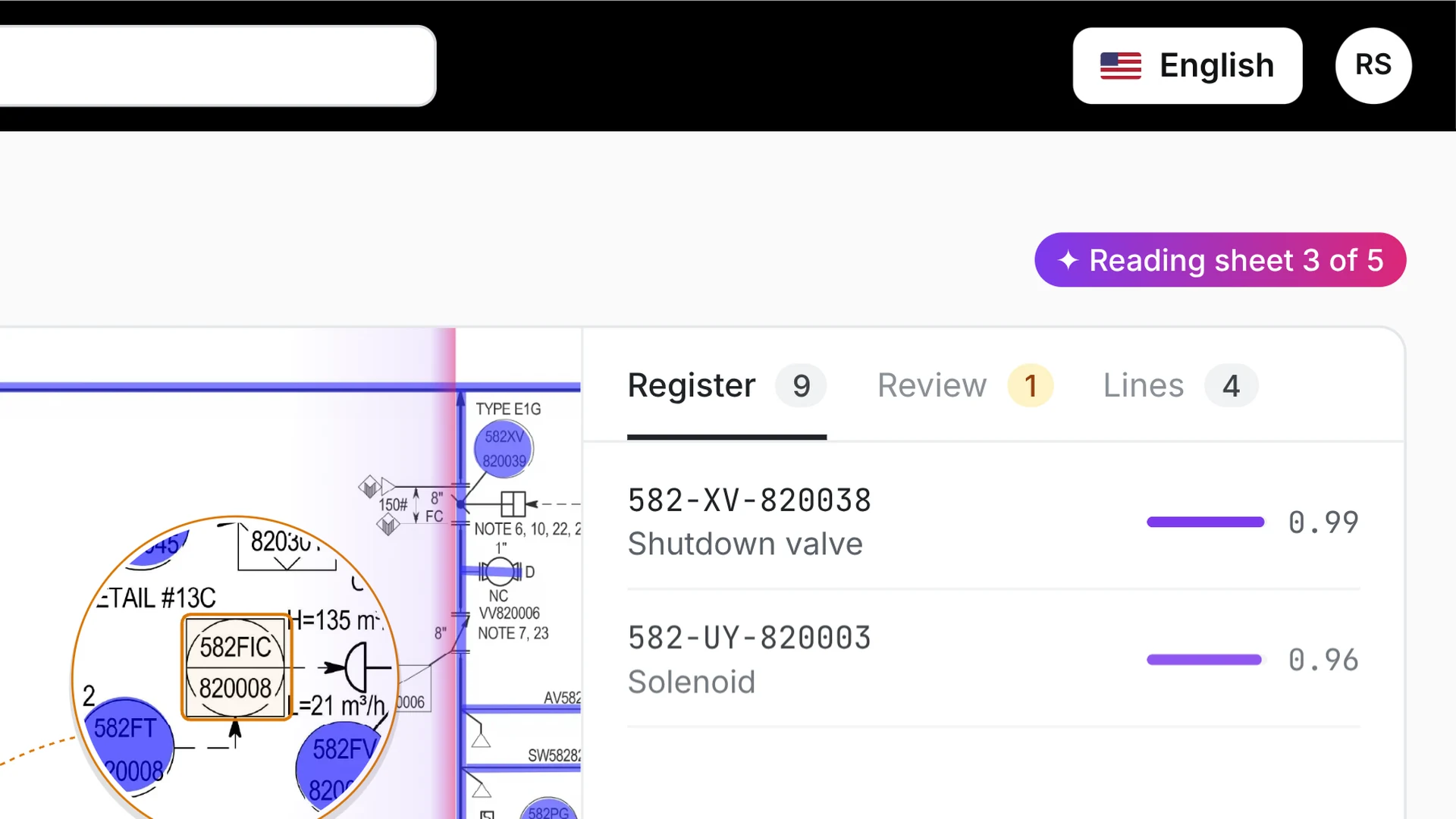

582-HS-820053582-HS-820053Hand SwitchInstrumentation582-82-01OUT96%
582-LG-82Q003GLLevel GaugeInstrumentation582-82-01582-82-01-03IN97%
582-P-8202ALIFT PUMP ACentrifugal PumpMechanical582-82-01582-82-01-02IN99%
582-P-8202A-THEADER TANKHeader TankMechanical582-82-01582-82-01-03IN98%
582-P-8202A-VV01582-P-8202A-VV01Air Release ValvePiping-IN97%
582-P-8202BLIFT PUMP BCentrifugal PumpMechanical-IN98%
582-XV-820038SHUTDOWN VALVEShutdown ValvePiping582-82-01582-82-01-02IN98%
582-PT-820045DISCHARGE PRESSUREPressure TransmitterInstrumentation582-82-01582-82-01-03IN99%
582-PG-820047PRESSURE GAUGEPressure GaugeInstrumentation582-82-01582-82-01-03IN99%
582-FIC-820008RECYCLE FLOWFlow ControllerInstrumentation582-82-01IN97%
582-FT-820008RECYCLE FLOWFlow TransmitterInstrumentation582-82-01IN97%
582-FV-820008RECYCLE FLOWFlow Control ValvePiping-IN98%
582-PSV-820050RELIEFPressure Safety ValvePiping582-82-01582-82-01-02IN98%
582-LT-82Q001HEADER TANK LEVELLevel TransmitterInstrumentation582-82-01582-82-01-03IN96%

Overview

Extract reads every P&ID, isometric and boundary drawing in a package, finds each tag with its type, system, subsystem and discipline, and hands the engineer a register to check instead of a spreadsheet to type.

Extract is part of Deskely Engineer, one of four suites across the life of a project. Every product reads from and writes to the same tag register, so each stage starts with clean data from the last.

Used by completions engineers, document controllers, commissioning leads and owner's teams.

What Extract replaces.

The tag takeoff, typed by hand.

TodayTyped from each PDF, sheet by sheet, then read again to catch the typos.
With ExtractRead off every sheet, with type, discipline and system, ready for review.
How Extract works

From drawing to register.

What happens to a P&ID, from upload to the Tag Register.

  1. 01Upload the drawings

    Add P&IDs, single-line diagrams and boundary drawings, and say which kind they are. A package goes in as one upload.

  2. 02Extract reads every sheet

    Each tag is found on the drawing with its type, discipline and system, and given a confidence score as it is read.

  3. 03See what each drawing produced

    Extraction Results shows exactly what came off each drawing, read-only, so anyone can check it against the sheet.

  4. 04Reconcile and commit

    A tag on more than one drawing is reconciled. Where the drawings disagree, Extract proposes a value and an engineer accepts it into the Tag Register.

Extract does the reading. Engineers make the calls.

Nothing is saved to the Tag Register until someone accepts it.

  1. 1Read by Extract

    Every tag with its type, discipline and system, and a confidence score.

  2. 2Flagged for review

    Where drawings disagree, Extract proposes a value and shows the drawings on each side.

  3. 3Your call

    An engineer adds the tag to the Tag Register, changes the value or rejects it.

Other products in Deskely Engineer

Deskely DeltaBy DeskelyShows what changed between revisions and everything it touches.Deskely ClauseBy DeskelyPulls the clauses that apply to an item from the full spec set into its datasheet.Deskely SubmittalBy DeskelyChecks every vendor submission against spec and register before review.Deskely ConformBy DeskelyChecks bids and the build against spec and code clauses.Deskely CoreBy DeskelyTag register, ITRs, punch and handover in one system of record.Deskely VerifyBy DeskelyInspection and test records captured in the field and checked as they are signed.
